ETA Approval Construction Chemical Anchor MT 500 With High Loading 500ML Volume

Place of Origin : China

MOQ : 20 sets

Price : $4.40/sets 20-999 sets

Main Raw Material : Acrylic

Usage : Construction

OEM : YES

Function : Construction

Certificate : ETA

Mixing Ratio : 2:1

Colors : dark green

Volume : 500ML

Keywords : Epoxy resin

Package : carton + pallet

Density : 1.05

MOQ : 20 Pcs

Contact Now

Chemical anchor /ETA Approval/Epoxy Anchoring Rebar Chemical Anchor

ETA Approval Construction Chemical Anchor MT 500 With High Loading 500ML VolumeETA Approval Construction Chemical Anchor MT 500 With High Loading 500ML VolumeETA Approval Construction Chemical Anchor MT 500 With High Loading 500ML VolumeETA Approval Construction Chemical Anchor MT 500 With High Loading 500ML VolumeETA Approval Construction Chemical Anchor MT 500 With High Loading 500ML Volume

Product Description

ETA Approval Construction Chemical Anchor MT 500 With High Loading 500ML Volume

  • Description

*Designed high strength chemical anchor, suitable for all kinds of concrete base material, even cracked concrete

*The main components of the chemical cartridge are modified epoxy resin, grade A adhesive; high/low temperature resistance and aging-resistance

*Injection embeddment, without disadvantage of uneven mixing

*We also provide specialized underwater adhesive for damp and water-filled holes for effective anchorage

*Excellent comprehensive performance, safe and reliable, construction tolerance is higher than conventional chemical anchor, non-toxic environmental protection, aging-resistance up to 50 years and high/low temperature resistance

*Comparing with mechanical anchors, the same tensile strength characteristics but low price advantage for your choice

Application

*steel structure

*bridge and tunnel

*industrial plant

*building curtain wall

ETA Approval Construction Chemical Anchor MT 500 With High Loading 500ML Volume

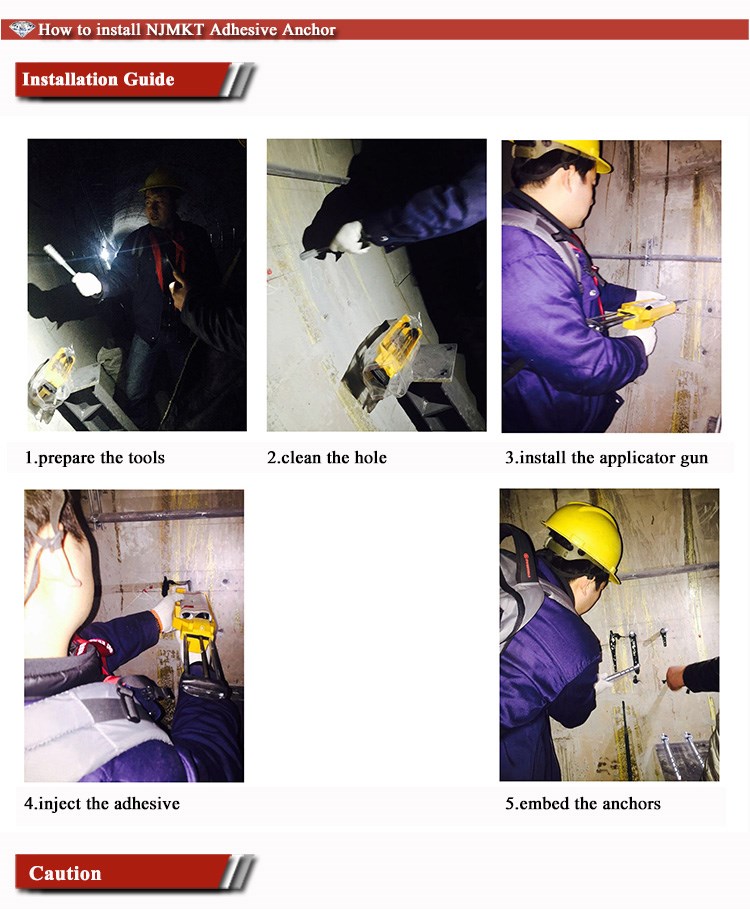

Installation Guide

1. Drill the hole to proper depth and diameter per specifications using drill systems.

2. Clean the hole using brush and compressed air.

3. Use specialized cartridge, place the cartridge into the dispensing tool, discard the first several times of injection until an even-colored mixture is extruded.

4. Insert the mixing nozzle to the bottom of the hole, and inject adhesive until the hole is about 2/3 full.

5. Embed the steel anchor element to the bottom of drilled hole clockwise slowly.

6. Check the surface of the hole if there is any overflow to ensure the hole is full. There shall be no gaps between the anchor and the wall of the drilled hole. Clean any excess resin from around the mouth of the hole.

7. Do not knock or strike the steel during cure time.

8. Finish installation and continue the follow-up construction.

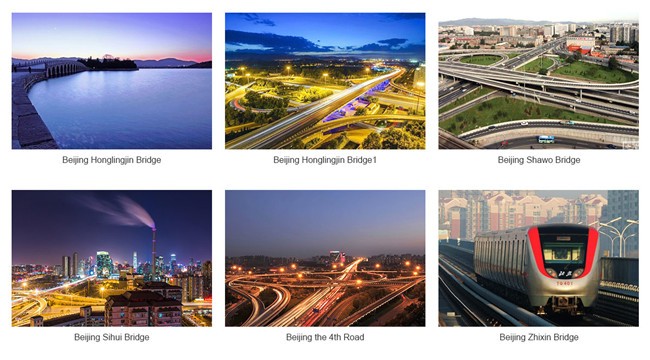

  • Project

ETA Approval Construction Chemical Anchor MT 500 With High Loading 500ML Volume

Packaging & Shipping

All products are well packed in strong cases.

Shipping packaging is in accordance with international standard for transportation.

Each goods are ensured to arrive on time based on sales order requirements.

Shipments can be arranged by sea, air, express.

Our Services

-7*24 Hours Online & Telephone Service

-Inquiry will be replied within 2 hours

-Pre-sale & after-sale free technical and maintenance service

-Professional technical support and installation guidance

-Customized design is available for our clients

-Independent R&D team and strict & scientific management system

FAQ

1. Where is your factory located? How can I visit there?

Factory Address: No.3 Jinhua Road, Guli Industrial Park, Jiangning, Nanjing City, Jiangsu Province, China

Office Address: Room306-307, West District of WandaJinjie, No. 291 Shuiximen Road, Nanjing City, Jiangsu Province, China

Tel: +86 (0)25-86651110 / 4008-945-118

Mobile: 13813833494/13813882444

Warmly welcome domestic and international customers to visit us!

2. Are you a manufacturer?

Yes, we are. We have our own factory to manufacture customized products according to customers' need. We are specialized in developing and manufacturing constructions reinforcement materials for more than ten years.

3. Is your sample free?

Yes, our sample is free but the shipping charge will be on your side.

4. How to get the quotation?

We have a full range of products with different sizes and specifications. Please offer us project information with details, material and size requirements of products or send us design drawing for our team to make complete solutions, then we could supply a most reasonable and favorable quotation for you.

5: What is your payment terms?

We prefer 100% T/T. For other payment terms we could discuss for every case.

6: How long is the lead time (producing time) ?It depends on your order quantity and our factory production schedule. Usually we have a large stock of standard size products, and we can arrange and deliver the goods asap.

Company Information

ETA Approval Construction Chemical Anchor MT 500 With High Loading 500ML Volume

2004 Jan. 15th Nanjing Mankate was established

2006 Mankate began to manufacture structural adhesive

2007 Structural adhesive and carbon fiber sheet in mass production

2009 Establish nationwide offices in six cities

2010 The only supplier of reinfocement materials for Dajian road highway bridge across

Chengdu city project

2010 June Start new production line of mechanical anchor

2012 The first heavy-duty mechanical anchor project successfully performed

2013 Mechanical anchor projects of Nanjing metro line 3, Ninghe intercity railway , Hexi

light railway, etc.

2014 Undercut panel anchor for Chengdu metro project

2015 Beijing fourth-ring road retrofit

2015 Mankate successfully researched underwater structural adhesive

2015 Mankate was invited as compiling unit of nuclear power standard after the inspection

of China National Nuclear Corporation

ETA Approval Construction Chemical Anchor MT 500 With High Loading 500ML Volume

Nanjing Mankate Science & Technology Co., Ltd., established in 2004, is a high-tech enterprise that specializes in researching, developing, manufacturing and selling a full range of anchoring and fixing systems, products and accessories for building reinforcement in construction industry.

Following the enterprise tenet of "forge ahead in unity, cooperate and innovate in pursuit of perfection, advance in sustained promotion", our company develops and manufactures more than 10 kinds of series products: undercut anchors, self-undercutting anchors, undercut panel anchors, adhesive anchors (chemical anchors), carbon fiber fabric (Japan Toray filament, Tairyfil), carbon fiber sheet, carbon fiber plate, prestressed anchorage device, carbon fiber adhesive, crack sealing adhesive, steel bonding adhesive, anchorage adhesive, crack filling adhesive, weather proofing sealant, structural adhesive, cast-in channels and so on. We vigorously promote the development of reinforcement, anchorage and curtain wall materials in construction building industry.
