NJMKT Undercut panel Anchor stainless steel A2/A4
Panel anchor plays an important role in service life and safety of curtain wall anchorage. NJMKT undercut panel anchor adopts stainless steel material to meet the required tensile and shear strength; simple structure, convenient operation and installation, no need of any adhesive, can safely and quickly installed in controlled height, and application with reveal angle or other attachment parts.
Our company manufactures various customized anchor, such as: hammer-in panel anchor (flush/stand-off fixing), spin-in panel anchor, lotus-ring panel anchor, seismic panel anchor, marble panel anchor, etc.
Key Features

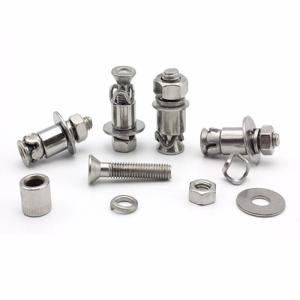

*Consist:high strength anchor rod, spacer sleeve, Z-type pressure ring, spring washer, nut
*Material:A4 stainless steel, higher ultimate load capacity than ordinary standard,and high corrosion resistance steelA4-70 (316L) can be applied in harsh environment, such as, splashing seawater environment, swimming pools with chlorine, industrial environment with SO2, etc.
*Application:suitable forfixingplate of buildings outsidemaintenance construction, especially natural stone decoration plate, and also ceramic plate, marble plate, granite, microcrystalline stone, crystal glass, man-made fiber board, etc.
Advantages
*Displacement control undercut anchor, convenient and quick installation
*Installation process is easy to control, wide construction coverage
*Lock-effect anchor fixing, initial installation stress is nearly negligible, low installation stress ensures the protect of panel materials
*Closed Z-type ring structure has completely dispersedtemperature stress caused by different temperature strain between the stone and anchor, which is the problem of ordinary panel anchor application
*Immediate load-carrying capability as soon as it is installed
*The designing of internal thread can effectively prevent the pressure ring loose off, increased the safety factor
*The check washer and check nut ensure the connection of curtain wall and keep the security and stabilityin the long-term wind load
Installation Guide
1.Drill the hole to proper depth and diameter .
2.Blow the hole clean using compressed air.
3.Install the panel anchor.
4.Tighten the nut.
Packaging & Shipping
FAQ
1. Where is your factory located? How can I visit there?
Factory Address: No.3 Jinhua Road, Guli Industrial Park, Jiangning, Nanjing City, Jiangsu Province, China
Office Address: Room306-307, West District of WandaJinjie, No. 291 Shuiximen Road, Nanjing City, Jiangsu Province, China
Tel:+86 (0)25-86651110 / 4008-945-118
Mobile: 13813833494/13813882444
Warmly welcome domestic and international customers to visit us!
2. Are you a manufacturer?
Yes, we are. We have our own factory to manufacture customized products according to customers' need. We are special in developing and manufacturing constructions reinforcement materials for more than ten years.
3. Is your sample free?
Yes, our sample is free but the shipping charge will be on your side.
4. How to get the quotation?
We have a full range of products with different sizes and specifications. Please offer us project information with details, material and size requirements of products or send us designing drawing for our team to makecomplete solutions, then we could supply a most reasonable and favorable quotation for you.
5: What is yourpayment terms?
Weprefer 100% T/T. For other payment terms we could discuss for every case.
