Product Description

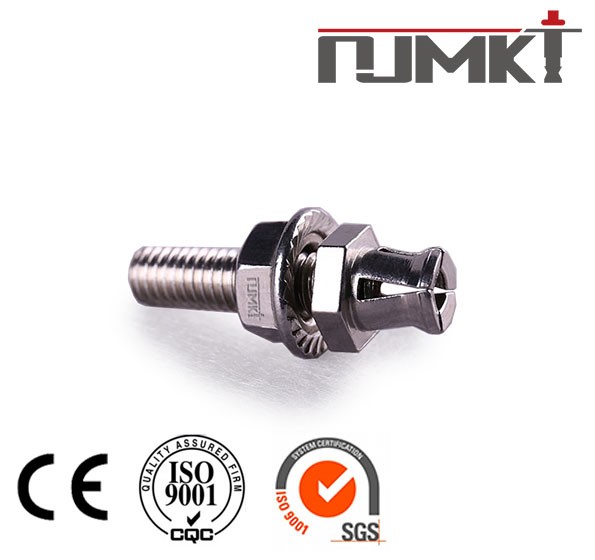

Panel anchor plays an important role in service life and safety of curtain wall anchorage. NJMKT undercut anchor for stone adopts stainless steel material to meet the required tensile and shear strength; simple structure, convenient operation and installation, no need of any adhesive, can safely and quickly installed in controlled height, and application with reveal angle or other attachment parts.
Our company manufactures various customized anchor, such as: hammer-in panel anchor (flush/stand-off fixing), spin-in panel anchor, lotus-ring panel anchor, seismic panel anchor, marble panel anchor, etc.
Key Features

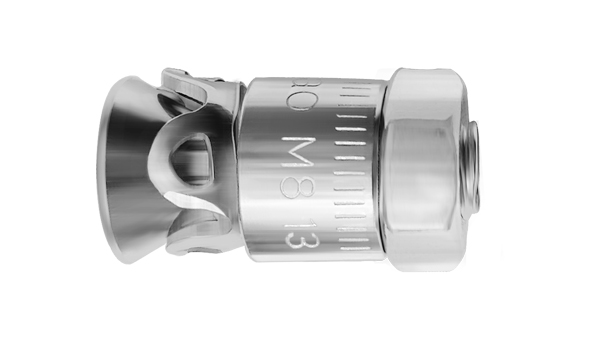

Consist: high strength anchor rod, spacer sleeve, Z-type pressure ring, spring washer, nut
Material: A4 stainless steel, higher ultimate load capacity than ordinary standard, and high corrosion resistance steel A4-70 (316L) can be applied in harsh environment, such as, splashing seawater environment, swimming pools with chlorine, industrial environment with SO2, etc.

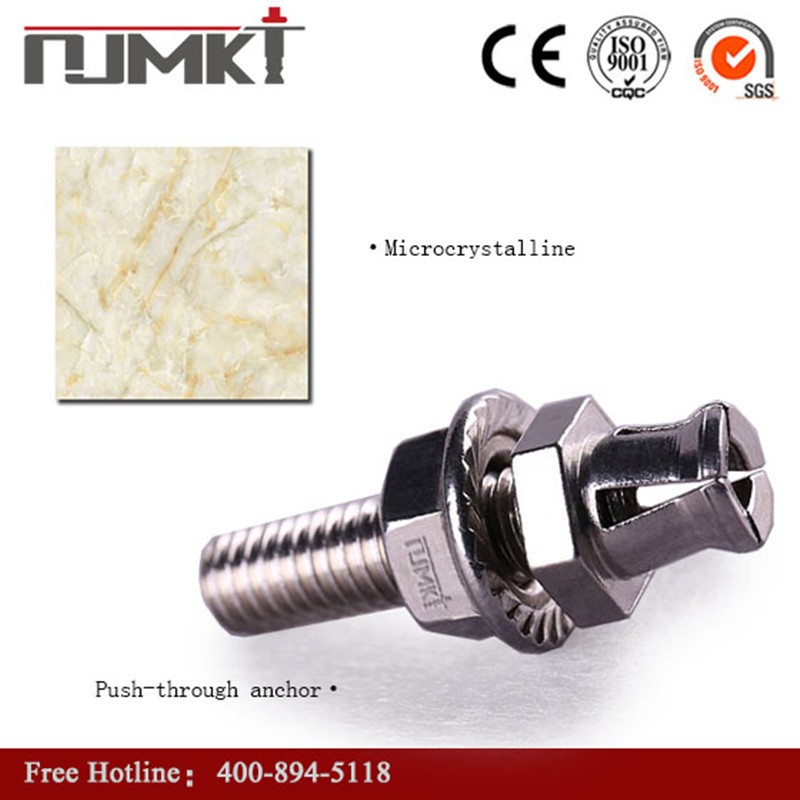

Application: suitable for fixing plate of buildings outside maintenance construction, especially natural stone decoration plate, and also ceramic plate, marble plate, granite, microcrystalline stone, crystal glass, man-made fiber board, etc.
Advantages
- Displacement control undercut anchor, convenient and quick installation
- Installation process is easy to control, wide construction coverage
- Lock-effect anchor fixing, initial installation stress is nearly negligible, low installation stress ensures the protection of panel materials
- Closed Z-type ring structure has completely dispersed temperature stress caused by different temperature strain between the stone and anchor, which is the problem of ordinary panel anchor application
- Immediate load-carrying capability as soon as it is installed
- The design of internal thread can effectively prevent the pressure ring loose off, increased the safety factor
- The check washer and check nut ensure the connection of curtain wall and keep the security and stability in the long-term wind load
Packing Photos
Step 1 Position: Drill the hole per specifications and fix the position on panel using specialized equipment.
Step 2 Hole drilling: Drill the hole according to requirement to proper depth and diameter, pay attention to the deviation of hole depth, diameter and hole reaming.
Step 3 Hole forming: Drill the hole according to requirement to proper depth and diameter, pay attention to the deviation of hole depth, diameter and hole reaming.
Step 4 Install anchor sleeve: Insert the anchor sleeve into the hole.
Step 5 Install panel anchor: Insert the anchor into the hole.
Step 6 Screw up: Tighten the anchor to the end of the hole.
